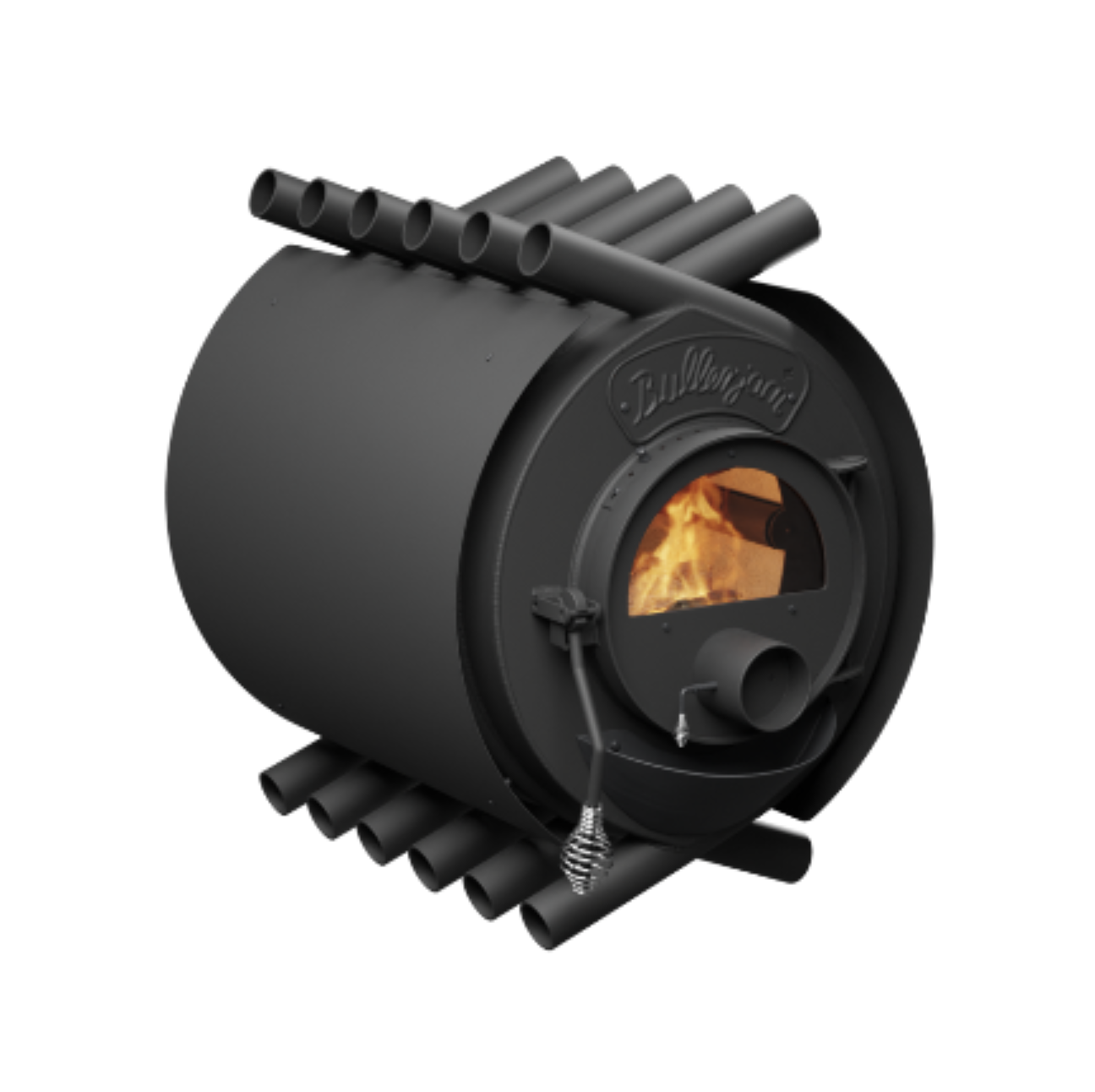

BULLERJAN STOVE FF18 TYPE 03 - 20 KW
The Free Flow stove FF18 type 03 with 20 kW is designed to heat large spaces.
This stove can heat rooms with an average room insulation approx of 580 m³. With good room insulation, the heat capacity even increases considerably.
DELIVERED FREE OF CHARGE south om the line Oslo-Stockholm
This stove can heat rooms with an average room insulation approx of 580 m³. With good room insulation, the heat capacity even increases considerably.
DELIVERED FREE OF CHARGE south om the line Oslo-Stockholm
- Pay easily with Klarna!
- Email us, we'll respond as soon as we can!
- Project customer? give us a call on 0501 40940
Description
Article no.: BJFF18-03-98030100
The large Free Flow model has an efficiency of 81%. A very efficient combustion + a very efficient convection (= distribution of heat) through the smart construction of the large steel pipes on the outside.
Energy efficiency class A
Heating capacity:
With good room insulation - approx. 750 m³.
With average room insulation - approx. 580 m³.
With insufficient room insulation - approx. 430 m³.

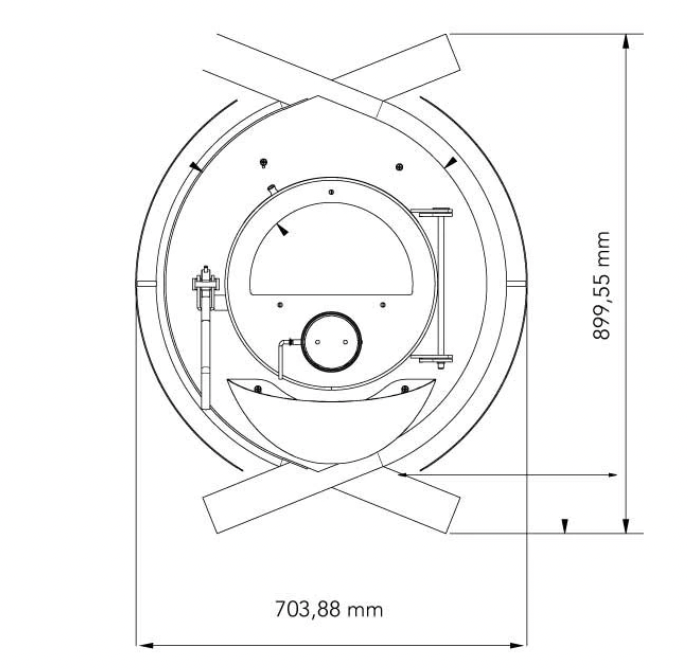

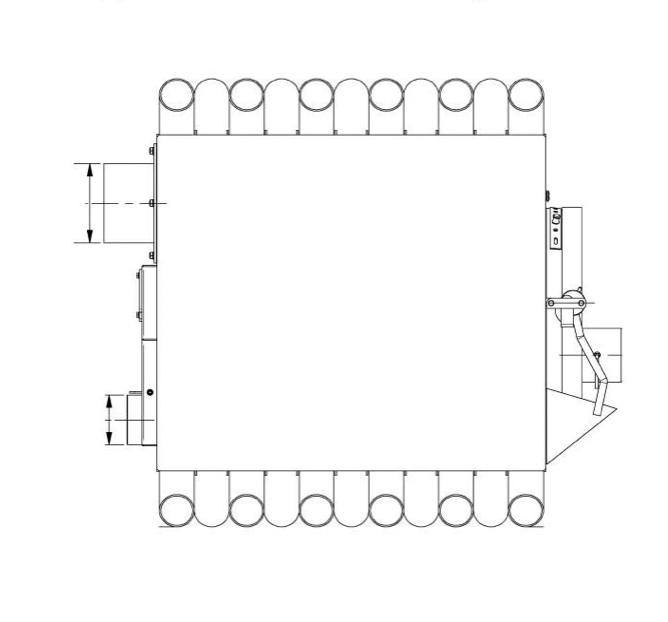

Depth 104.0 cm
The width is 71.0 cm
Height 90.0 cm
Total weight 220 kg
Depth combustion chamber 74.0 cm
Recommended log length: 25 cm × 2 (2 side by side – 4 in total)
The width of the combustion chamber 48.0 cm
Height combustion chamber 37.0 cm
Flue gas pipe coupling Ø 16 cm
Air inlet connection Ø 10 cm
Approx. Height middle Flue gas pipe coupling 65.0 cm
Height middle air inlet 21.5 cm
Distance to combustible materials - back 30 cm
Side next to the stove 20 cm
Side up to 40 cm for the stove 50 cm
The front from the display window is 120 cm
Nominal heat capacity 20 kW
Supply pressure 12 Pa
Exhaust temperature at the nozzle 308 ° C
Flue gas mass flow 20.4 g / s
Efficiency 80%
CO (bez. 13% O2) 0.09%
CO (bez. 13% O2) 1125 mg / m3
Damm (bez. 13% = 2) 26 mg / m3
NOx / bez. 13% O2) 124 mg / m3
Energy efficiency class A
Heating capacity:
With good room insulation - approx. 750 m³.
With average room insulation - approx. 580 m³.
With insufficient room insulation - approx. 430 m³.
Depth 104.0 cm
The width is 71.0 cm
Height 90.0 cm
Total weight 220 kg
Depth combustion chamber 74.0 cm
Recommended log length: 25 cm × 2 (2 side by side – 4 in total)
The width of the combustion chamber 48.0 cm
Height combustion chamber 37.0 cm
Flue gas pipe coupling Ø 16 cm
Air inlet connection Ø 10 cm
Approx. Height middle Flue gas pipe coupling 65.0 cm
Height middle air inlet 21.5 cm
Distance to combustible materials - back 30 cm
Side next to the stove 20 cm
Side up to 40 cm for the stove 50 cm
The front from the display window is 120 cm
Nominal heat capacity 20 kW
Supply pressure 12 Pa
Exhaust temperature at the nozzle 308 ° C
Flue gas mass flow 20.4 g / s
Efficiency 80%
CO (bez. 13% O2) 0.09%
CO (bez. 13% O2) 1125 mg / m3
Damm (bez. 13% = 2) 26 mg / m3
NOx / bez. 13% O2) 124 mg / m3
